Technical Parameter

Measuring range	0.53 – 534.0 ppm CaCO3 (see reagent type)
Measurement time	About 3 minutes, depending on water hardness and set rinse time
Accuracy	± 5% of the upper limit of the selected reagent
Repeatability	The upper limit of the selected reagent ± 5%
Analysis cycle	continuous measurement / interval measurement (5-99min) / external start signal
Rinse time	15 – 1800s
Water consumption	about 1000ml / analysis
Display	Backlit LCD display graphics, numerical
Optional units	mmol / L, ppm CaCO3, ° dH, ° f and so on
Current output	0/4 – 20mA, Max. 750Ω
Relay output	2 passive relay output NC / NO, 250VAC 4A
Input	External switch signal start analysis

Order Guide

Order No.	Description

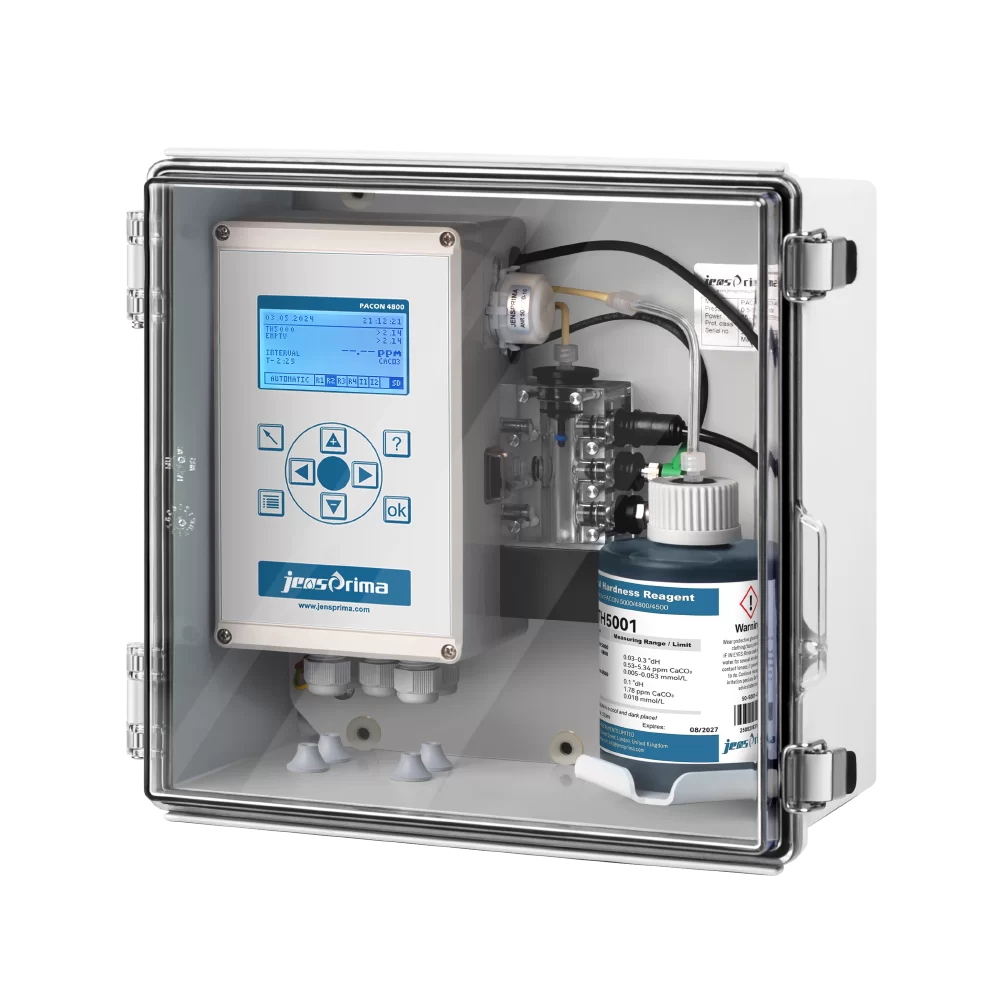

33-4800-00	PACON 4800 Online Hardness Analyzer
33-4800-10	PACON 4800 Online Alkalinity Analyzer
50-5000-10	Spare Parts Kit Including pump head (including pump tube), all seals, stirrups, connection pipe of reagent bottle, recommend to exchange every year
50-5000-20	LED light source, recommended to be replaced every two years
